PPR TRANSITION ROUND FEMALE – SDR 6 – THREADED
Couldn't load pickup availability
Ask an expert!

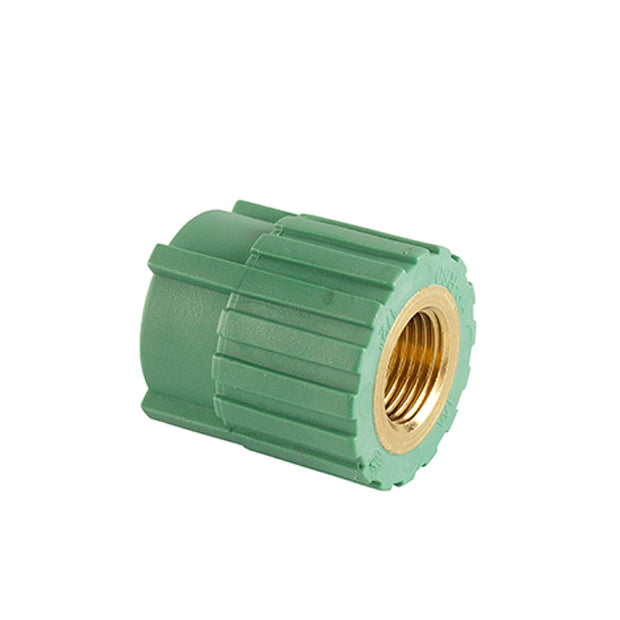

The PP-R Transition Round Female fitting (SDR 6) is engineered to connect PP-R piping systems with male threaded metal fittings in a safe and efficient manner. Produced from premium PP-R material, it offers durability, corrosion resistance, and reliable performance in demanding water supply systems.
The precision-molded female thread conforms to EN 10226 (ISO 7), ensuring a secure and leak-free joint. For best sealing results, PTFE tape is recommended during installation.
This fitting is ideal for use in drinking water systems, hot tap water lines, and sanitary applications where consistent quality and long-term reliability are required.

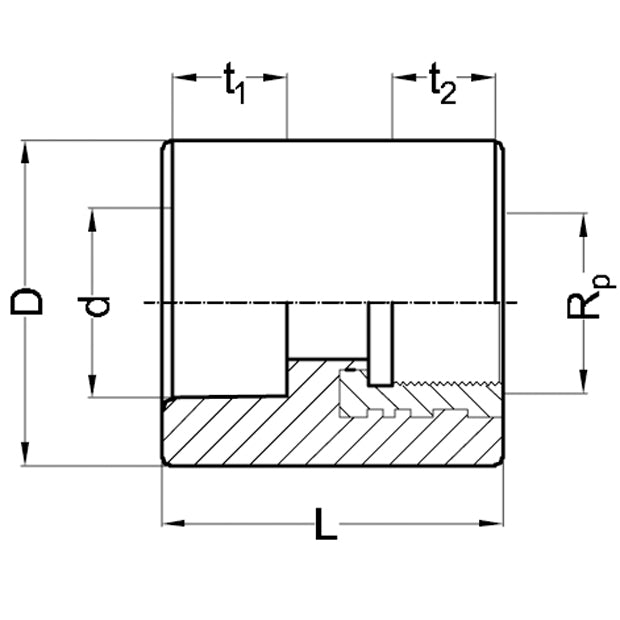

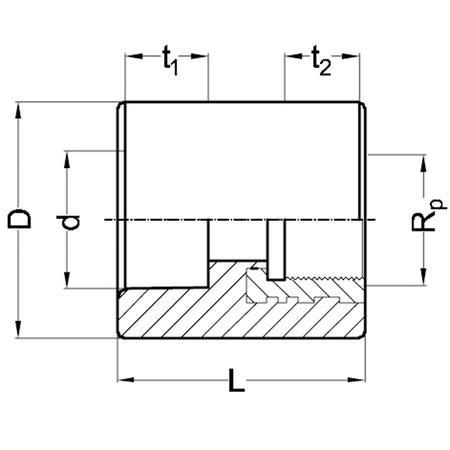

| Article | d x Rp | L | t1 | t2 | D | kg |
| 5155 28101 | 20 x ½“ | 42 | 15 | 17 | 41 | 0.072 |
| 5155 28102 | 20 x ¾“ | 44 | 15 | 17 | 47 | 0.1 |
| 5155 28103 | 25 x ½“ | 44 | 16 | 17 | 41 | 0.076 |
| 5155 28104 | 25 x ¾“ | 44 | 16 | 17 | 47 | 0.095 |
| 5155 28105 | 32 x ½“ | 44 | 18 | 17 | 43 | 0.105 |
